Milwaukee Valve

No. U-15

No. U-163

No. U-164

No. U-17-F

No. U-17-G

No. U-17-WF

No. U-18

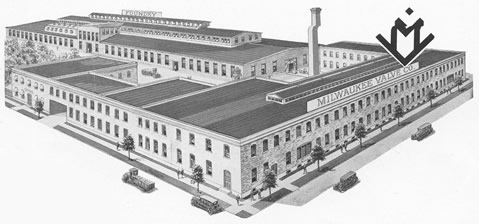

About Milwaukee Valve

Founded 1901?

Full Coprorate Name: Milwaukee Valve Company

Headquarters: Milwaukee, Wisconsin

Milwaukee Valve Hanging Hook Types

Milwaukee Valve No. U-15

"A Full Flow, Heavy Duty Hose Service. Used in making Bulk Deliveries from truck tanks to underground storage tanks, particularly fuel oil deliveries.

Has a special two-piece, piston plunger type valve which eliminates chattering. Rear guard is notched permitting valve to be held open in any desired position.

When fully opened, this valve permits full, unrestricted flow of the liqu

Made in 1 1/4" and 1 1/2" sizes."

Milwaukee Valve Company Catalog, 1933



Milwaukee Valve No. U-163

"Bronze, improved variable speed, "Kickless" Hoze Nozzle Valve, for Meter Pumps.

Specially constructed chamber with two-piece piston-type plunger eliminates all chattering and pounding and permits discharge ranging from a few drops to full nozzle capacity.

Guard and trigger are riveted in position permitting replacement if damages or broken in service.

When fully opened the valve produces practically no resistance whatsoever to the flow of the liquid.

The absence of chattering contributes greatly to more efficient pump operation and adds to the life of the nozzle, hose and pump.

Made in 1" and 1 1/4" sizes"

Milwaukee Valve Company Catalog, 1933

Cut	Tube	Check Type
No. U-163-F	Flexible
No. U-163-F-1	Flexible	Inlet
No. U-163-F-2	Flexible	Outlet
No. U-163-R	Rigid
No. U-163-R-1	Rigid	Inlet
No. U-163-R-2	Rigid	Outlet

Milwaukee Valve No. U-164

"This valve is identical in appearance to the popular U-163 (Universal Type) with the exception that a flange is added. In visible pump service the special piston-type plunger is not required.

Made in 3/4", 1", and 1 1/4" sizes"

Milwaukee Valve Company Catalog, 1933

Cut	Tube
No. U-164-F	Flexible
No. U-164-R	Rigid



Milwaukee Valve No. U-17-F

"This is a popular valve for visible pump service. When the valve is fully opened it provided unrestricted flow of the liquid. Made of high grade bronze for heavy duty service.

Made in 3/4", 1" and 1 1/4" sizes."

Milwaukee Valve Company Catalog, 1933

Cut	Tube
No. U-17-F	Flexible
No. U-17-R	Flexible



Milwaukee Valve No. U-17-G

"Improved variable speed, "Kickless" Hose Nozzle Vavle, for Meter Pumps. Made of high grade Bronze for heavy duty service.

Guard is slotted in bottom and rear.

Made in 1" and 1 1/4" sizes."

Milwaukee Valve Company Catalog, 1933

Cut	Tube	Check Type
No. U-17-GF	Flexible
No. U-17-GF-1	Flexible	Inlet
No. U-17-GF-2	Flexible	Outlet
No. U-17-GR	Rigid
No. U-17-GR-1	Rigid	Inlet
No. U-17-GR-2	Rigid	Outlet



Milwaukee Valve No. U-17-WF

"Made specially for Wayne Visible pumps. Has drainback flange and special tube to fit the Wayne locking device. The same sturdy construction as other "Milwaukee" U-17 Hose Nozzle Vavles.

Supplied with special Wayne type tube only.

Made in 3/4", 1" and 1 1/4" sizes."

Milwaukee Valve Company Catalog, 1933



Milwaukee Valve No. U-18

"For old model Wayne Pumps requiring Hose Nozzle Valve with Trigger and Guard on top.

Specially constructed chamber with piston-type plunger eliminates chattering. Bronze, variable speed.

Made in 3/4", 1", and 1 1/4" sizes."

Milwaukee Valve Company Catalog, 1933

Cut	Tube	Check Type
No. U-18-F	Flexible
No. U-18-F-1	Flexible	Inlet
No. U-18-F-2	Flexible	Outlet
No. U-18-R	Rigid
No. U-18-R-1	Rigid	Inlet
No. U-18-R-2	Rigid	Outlet
